AP20H04NF Specs and Replacement

Type Designator: AP20H04NF

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 20 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 20 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 14 nS

Cossⓘ - Output Capacitance: 109 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.024 Ohm

Package: PDFN5X6-8L

AP20H04NF substitution

- MOSFET ⓘ Cross-Reference Search



AP20H04NF datasheet

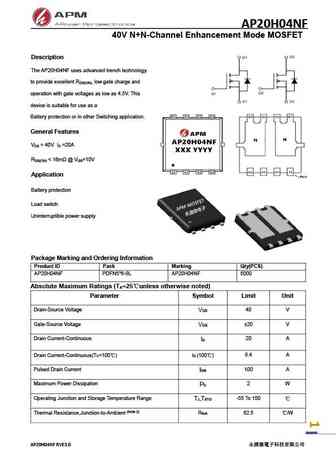

 ..1. Size:1626K  cn apm
 ap20h04nf.pdf pdf_icon

AP20H04NF

AP20H04NF 40V N+N-Channel Enhancement Mode MOSFET Description The AP20H04NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =20A DS D R ... See More ⇒

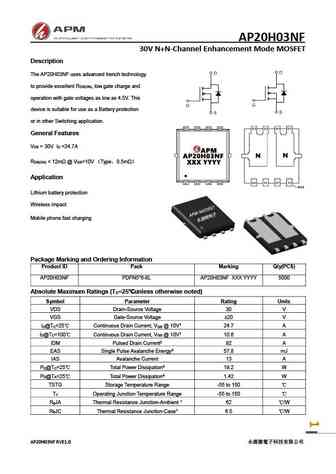

 8.1. Size:1317K  cn apm
 ap20h03nf.pdf pdf_icon

AP20H04NF

AP20H03NF 30V N+N-Channel Enhancement Mode MOSFET Description The AP20H03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =24.7A DS D R ... See More ⇒

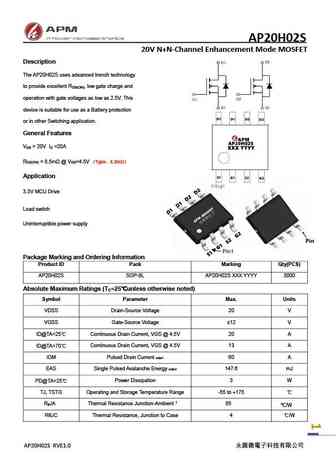

 8.2. Size:1511K  cn apm
 ap20h02s.pdf pdf_icon

AP20H04NF

AP20H02S 20V N+N-Channel Enhancement Mode MOSFET Description The AP20H02S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 20V I =20A DS D R ... See More ⇒
