AP3415A Datasheet and Replacement


   Type Designator: AP3415A
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 1.4 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 20 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V
   |Id| ⓘ - Maximum Drain Current: 4.2 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 8.6 nS
   Cossⓘ - Output Capacitance: 130 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.043 Ohm
   Package: SOT23


 AP3415A substitution

   - MOSFET ⓘ Cross-Reference Search



AP3415A Datasheet (PDF)

 ..1. Size:1148K  cn apm
 ap3415a.pdf pdf_icon

AP3415A

AP3415A -20V P-Channel Enhancement Mode MOSFET Description The AP3415A uses advanced trench It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide var

 9.1. Size:1134K  cn apm
 ap3410mi.pdf pdf_icon

AP3415A

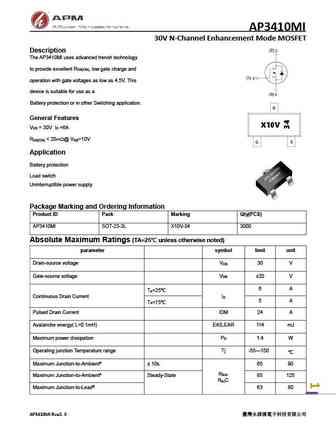

AP3410MI 30V N-Channel Enhancement Mode MOSFET Description The AP3410MI uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =6A DS DR
