AP3912GD Datasheet. Specs and Replacement

Type Designator: AP3912GD

Marking Code: 3912GD

Type of Transistor: MOSFET

Type of Control Channel: NP-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 32 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 36(28) A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2.5 V

Qg ⓘ - Total Gate Charge: 19 nC

tr ⓘ - Rise Time: 5 nS

Cossⓘ - Output Capacitance: 140 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.013 Ohm

Package: PDFN5X6

AP3912GD substitution

- MOSFET ⓘ Cross-Reference Search



AP3912GD datasheet

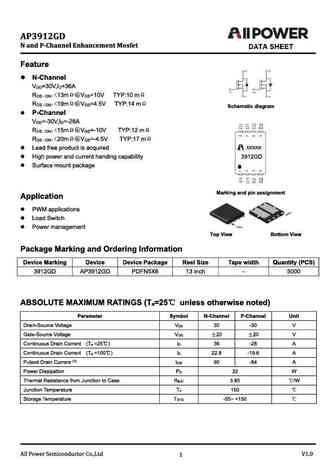

 ..1. Size:1190K  allpower
 ap3912gd.pdf pdf_icon

AP3912GD

... See More ⇒

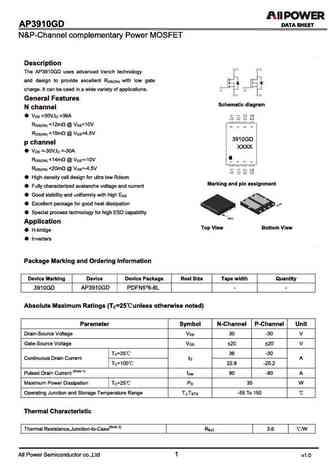

 9.1. Size:2776K  1
