AUB045N12 PDF and Equivalents Search



AUB045N12 Specs and Replacement

Type Designator: AUB045N12

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 310 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 120 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 152 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 101 nS

Cossⓘ - Output Capacitance: 654 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0045 Ohm

Package: TO263

AUB045N12 substitution

- MOSFET ⓘ Cross-Reference Search



AUB045N12 datasheet

 ..1. Size:893K  cn anhi

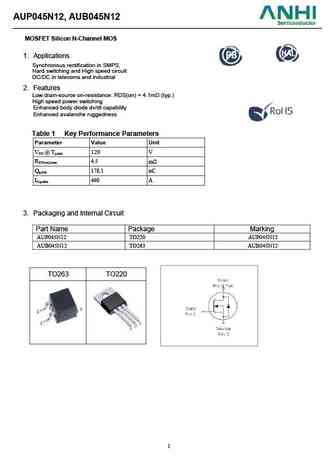

 aup045n12 aub045n12.pdf pdf_icon

AUB045N12

AUP045N12, AUB045N12 MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance RDS(on) = 4.1m (typ.) High speed power switching Enhanced body diode dv/dt capability Enhanced avalanche ruggedness Table 1 Key Performance Parameters Par... See More ⇒

 6.1. Size:929K  cn anhi

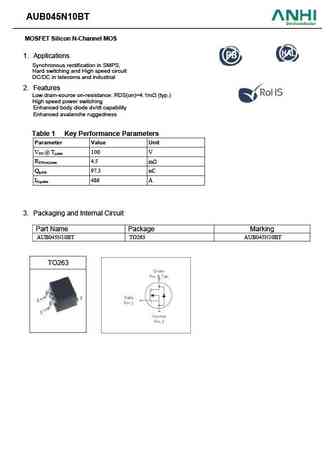

 aub045n10bt.pdf pdf_icon

AUB045N12

AUB045N10BT MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance RDS(on)=4.1m (typ.) High speed power switching Enhanced body diode dv/dt capability Enhanced avalanche ruggedness Table 1 Key Performance Parameters Parameter Valu... See More ⇒

Detailed specifications: AUA056N08BGL, AUA060N08AG, AUA062N08BG, AUB026N085, AUB033N08BG, AUB034N10, AUB039N10, AUB045N10BT, IRFB3607
