AUB056N08BGL Specs and Replacement

Type Designator: AUB056N08BGL

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 135 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 85 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 65 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 16.6 nS

Cossⓘ - Output Capacitance: 1215 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0056 Ohm

Package: TO263

AUB056N08BGL substitution

- MOSFET ⓘ Cross-Reference Search



AUB056N08BGL datasheet

 ..1. Size:962K  cn anhi
 aup056n08bgl aud056n08bgl aun050n08bgl aua056n08bgl aub056n08bgl.pdf pdf_icon

AUB056N08BGL

AUP056N08BGL, AUD056N08BGL, AUN050N08BGL, AUA056N08BGL, AUB056N08BGL MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance RDS(ON) = 4.9m (typ.) Easy to control Gate switching Enhancement mode Vth = 1.2 to 2.5 V Table 1 Key Pe... See More ⇒

 7.1. Size:1110K  cn anhi
 aun053n10 aub056n10 aup056n10.pdf pdf_icon

AUB056N08BGL

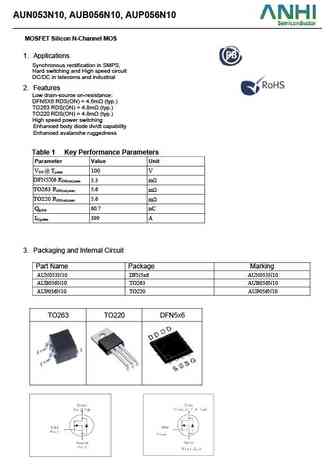

AUN053N10, AUB056N10, AUP056N10 MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance DFN5X6 RDS(ON) = 4.6m (typ.) TO263 RDS(ON) = 4.8m (typ.) TO220 RDS(ON) = 4.8m (typ.) High speed power switching Enhanced body diode dv/dt... See More ⇒

 9.1. Size:1388K  cn anhi
 aup052n085 aub050n085 aun045n085.pdf pdf_icon

AUB056N08BGL

AUP052N085, AUB050N085, AUN045N085 MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance RDS(ON) = 4.2m (typ.) Easy to control Gate switching Enhancement mode Vth = 2.5 to 3.5 V Table 1 Key Performance Parameters Parameter Val... See More ⇒

 9.2. Size:1094K  cn anhi
 aud060n055 aun042n055 aub050n055 aup060n055.pdf pdf_icon

AUB056N08BGL

AUD060N055,AUN042N055,AUB050N055,AUP060N055 MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance TO252 RDS(ON) = 4m (typ.) DFN5X6 RDS(ON) = 3.6m (typ.) TO263&TO220 RDS(ON) = 4.3m (typ.) Easy to control Gate switching Enhancement... See More ⇒
