AUP034N10 Specs and Replacement

Type Designator: AUP034N10

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 330 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 195 A

Tj ⓘ - Maximum Junction Temperature: 170 °C

Electrical Characteristics

tr ⓘ - Rise Time: 50 nS

Cossⓘ - Output Capacitance: 2900 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0034 Ohm

Package: TO220

AUP034N10 substitution

- MOSFET ⓘ Cross-Reference Search



AUP034N10 datasheet

 ..1. Size:1575K  cn anhi
 aup034n10 aub034n10.pdf pdf_icon

AUP034N10

AUP034N10, AUB034N10 MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance RDS(on) = 2.9m (typ.) High speed power switching Enhanced body diode dv/dt capability Enhanced avalanche ruggedness Table 1 Key Performance Parameters Par... See More ⇒

 ..2. Size:966K  cn anhi
 aup034n10 aub034n10 aur030n10.pdf pdf_icon

AUP034N10

AUP034N10, AUB034N10, AUR030N10 MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance TO220&TO263 RDS(on) = 2.8m (typ.) TOLL-8L RDS(on) = 2.4m (typ.) High speed power switching Enhanced body diode dv/dt capability Enhanced ava... See More ⇒

 7.1. Size:950K  cn anhi

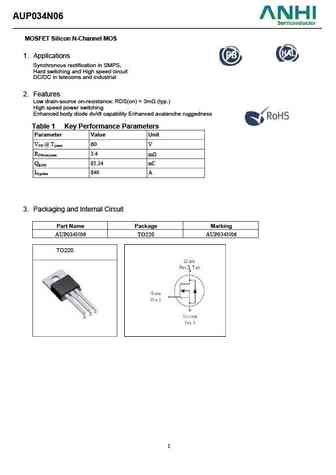

 aup034n06.pdf pdf_icon

AUP034N10

AUP034N06 MOSFET Silicon N-Channel MOS 1. Applications Synchronous rectification in SMPS, Hard switching and High speed circuit DC/DC in telecoms and industrial 2. Features Low drain-source on-resistance RDS(on) = 3m (typ.) High speed power switching Enhanced body diode dv/dt capability Enhanced avalanche ruggedness Table 1 Key Performance Parameters Parameter Value Un... See More ⇒

 9.1. Size:970K  cn anhi
 aun036n10 aup039n10 aua039n10 aub039n10.pdf pdf_icon

AUP034N10

AUN036N10, AUP039N10, AUA039N10, AUB039N10 MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance DFN5x6 RDS(ON) = 3.3m (typ.) TO220&220F&263 RDS(ON) = 3.6m (typ.) Easy to control Gate switching Enhancement mode Vth = 1.2 to... See More ⇒

SHOW MORE
