SVF11N65T Specs and Replacement

Type Designator: SVF11N65T

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 205 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 11 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 34.51 nS

Cossⓘ - Output Capacitance: 152 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.84 Ohm

Package: TO220

SVF11N65T substitution

- MOSFET ⓘ Cross-Reference Search



SVF11N65T datasheet

 ..1. Size:284K  1
 svf11n65t svf11n65f.pdf pdf_icon

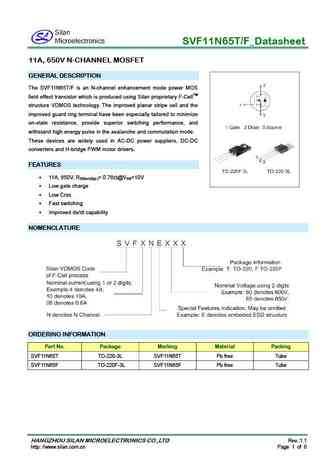

SVF11N65T

SVF11N65T/F_Datasheet 11A, 650V N-CHANNEL MOSFET GENERAL DESCRIPTION The SVF11N65T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior swi... See More ⇒
