ASDM7002EZA Datasheet. Specs and Replacement

Type Designator: ASDM7002EZA

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.36 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 0.3 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19.4 nS

Cossⓘ - Output Capacitance: 2.7 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 2.5 Ohm

Package: SOT23

ASDM7002EZA substitution

- MOSFET ⓘ Cross-Reference Search



ASDM7002EZA datasheet

 ..1. Size:632K  ascend
 asdm7002eza.pdf pdf_icon

ASDM7002EZA

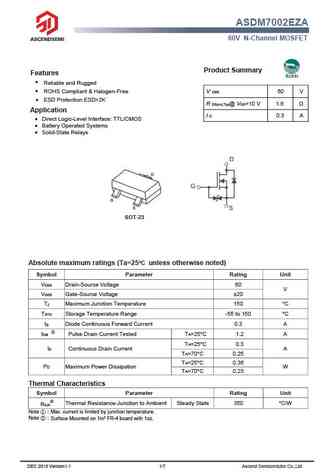

ASDM7002EZA 60V N-Channel MOSFET Product Summary Features Reliable and Rugged ROHS Compliant & Halogen-Free V DSS 60 V ESD Protection ESD>2K R DS(on),Typ@ VGS=10 V 1.6 Application I D 0.3 A Direct Logic-Level Interface TTL/CMOS Battery Operated Systems Solid-State Relays SOT-23 Absolute maximum ratings (Ta=25 unless otherwise noted) Symbol Paramet... See More ⇒
