Скачать даташит для bms2302:

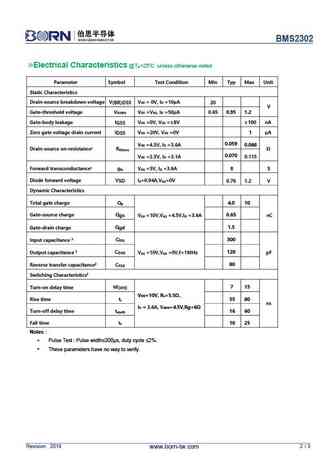

BMS2302 N-Channel MOSFET Features Pin Configurations V = 20V DS I D = 2.1A R @V = 4.5V, Max =68m DS(ON) GS R @V = 2.5V, Max =115m DS(ON) GS General Description Advanced trench process technology High Density Cell Design For Ultra Low On-Resistance SOT-323 for Surface Mount Package. Absolute Maximum Ratings @T =25 unless otherwise noted A Parameter Symbol Value Unit Drain-Source Voltage VDS 20 V Gate-Source Voltage V 8 GS Continuous Drain Current I 2.1 D A Continuous Source-Drain Current(Diode I 0.6 S Conduction) Power Dissipation PD 0.2 W Thermal Resistance from Junction to R JA 625 /W Ambient (t 5s) Operating Junction T 150 J Storage Temperature T -55 +150 STG Revision 2018 1 / 3 www.born-tw.com BMS2302 Electrical Characteristics @T =25 unless otherwise noted A
