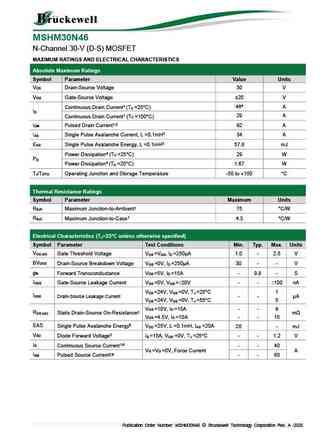

MSHM30N46 N-Channel 30-V (D-S) MOSFET Description Graphic Symbol The device is the highest performance trench N-ch MOSFETs with extreme high cell density, which provide excellent R and gate charge for most of the DS(ON) synchronous buck converter applications. The device meets the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved. Features Package Dimension R =9m @ V =10V DS(ON) GS Super Low Gate Charge Excellent CdV/dt effect decline 100% EAS Guaranteed Green Device Available Typical Applications MB / VGA / Vcore POL Applications SMPS 2nd SR Package type PDFN 3.3X3.3 Millimeter Millimeter REF. REF. Min. Nom. Max. Min. Nom. Max. A 0.70 0.75 0.80 E1 3.00 3.15 3.20 Packing & Order Information b 0.25 0.30 0.35 E2 2.39 2.49 2.59 C 0.10 0.15 0.25 e 0.65
