Скачать даташит для cem3133:

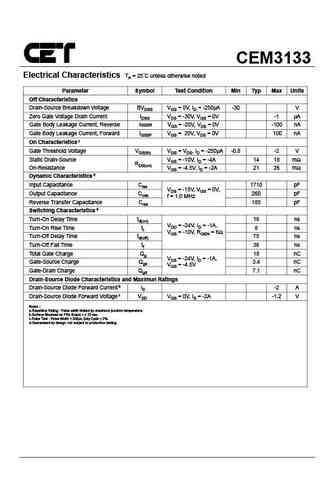

CEM3133 P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -9.3A, RDS(ON) = 18mW @VGS = -10V. RDS(ON) = 26mW @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D D D D RoHS compliant. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S S S G ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Rating Units Drain-Source Voltage VDS -30 V Gate-Source Voltage VGS 25 V Drain Current-Continuous@TA = 25 C ID -9.3 A Drain Current-Pulsed a IDM -37.2 A Maximum Power Dissipation PD 2.5 W Operating and Store Temperature Range TJ,Tstg -55 to 150 C Thermal Characteristics Parameter Symbol Limit Units Thermal Resistance, Junction-to-Ambient b RqJA 50 C/W Rev 2. 2017.Dec Details are subject to change without notice . http //www.cet-mos.com CEM3133 Electrical Character... ещё ⇒
