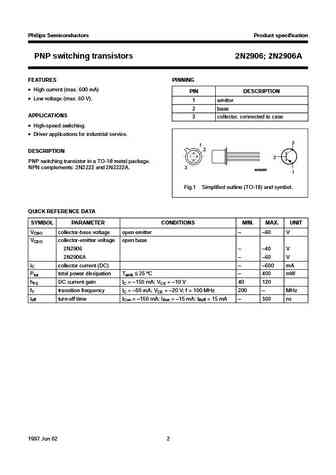

DISCRETE SEMICONDUCTORSDATA SHEETM3D1252N2906; 2N2906APNP switching transistors1997 Jun 02Product specificationSupersedes data of September 1994File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationPNP switching transistors 2N2906; 2N2906AFEATURES PINNING High current (max. 600 mA)PIN DESCRIPTION Low voltage (max. 60 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case High-speed switching Driver applications for industrial service.31handbook, halfpage2DESCRIPTION2PNP switching transistor in a TO-18 metal package.3NPN complements: 2N2222 and 2N2222A.MAM2631Fig.1 Simplified outline (TO-18) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter --60 VVCEO collector-emitter voltage open base2N2906 --40 V2
