Скачать даташит для 2n2906a_2n2907a_2n2906al_2n2907al_2n2906aua_2n2907aua_2n2906aub_2n2907aub_2n2906aubc_2n2907aubc:

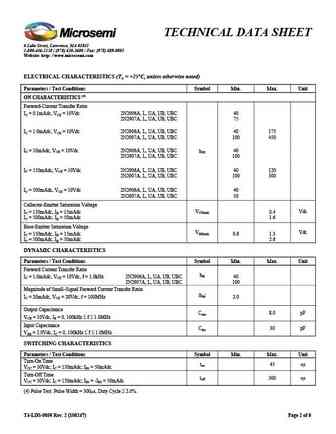

TECHNICAL DATA SHEET 6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Website: http: //www.microsemi.com PNP SMALL SIGNAL SILICON TRANSISTOR Qualified per MIL-PRF-19500/291 DEVICES LEVELS 2N2906A 2N2907A JAN 2N2906AL 2N2907AL JANTX 2N2906AUA 2N2907AUA JANTXV 2N2906AUB 2N2907AUB JANS 2N2906AUBC * 2N2907AUBC * * Available to JANS quality level only. ABSOLUTE MAXIMUM RATINGS (TC = +25C unless otherwise noted) Parameters / Test Conditions Symbol Value UnitCollector-Emitter Voltage VCEO 60 VdcCollector-Base Voltage VCBO 60 VdcEmitter-Base Voltage VEBO 5.0 VdcCollector Current IC 600 mAdcTotal Power Dissipation @ TA = +25C PT 0.5 WTO-18 (TO-206AA) 2N2906A, 2N2907A Operating & Storage Junction Temperature Range Top, Tstg -65 to +200 CNote: Consult 19500/291 for Thermal Performance Curves. ELECTRICAL
