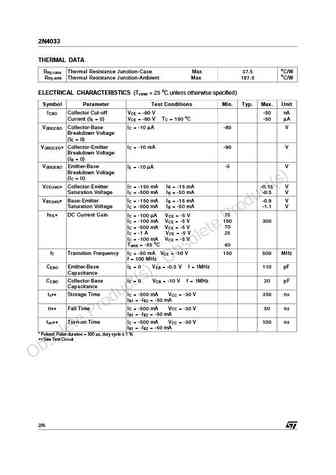

2N4033SMALL SIGNAL PNP TRANSISTORDESCRIPTION The 2N4033 is a silicon Planar Epitaxial PNPtransistor in Jedec TO-39 metal case primaryintended for large signal, low noise industrialapplications.TO-39INTERNAL SCHEMATIC DIAGRAMABSOLUTE MAXIMUM RATINGSSymbol Parameter Value UnitVCBO Collector-Base Voltage (IE = 0) -80 VVCEO Collector-Emitter Voltage (IB = 0) -80 VV Emitter-Base Voltage (I = 0) -5 VEBO CI Collector Current -1 ACP 0.8 Wtot Total Dissipation at Tamb 45 oC4 W at T 45 oCCoT Storage Temperature -55 to 175 CstgoT Max. Operating Junction Temperature 175 Cj1/6September 2002 Obsolete Product(s) - Obsolete Product(s)Obsolete Product(s) - Obsolete Product(s)2N4033THERMAL DATAoRthj-case Thermal Resistance Junction-Case Max 37.5 C/Wo R Thermal Resistance Junction-Ambient Max 187.5 C/Wthj-ambELECT
