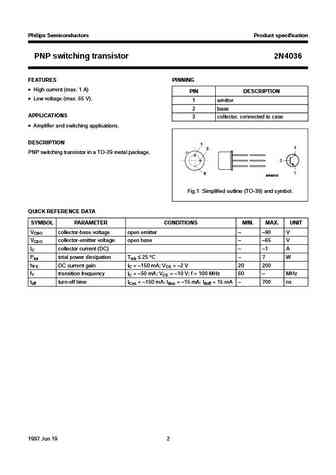

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1112N4036PNP switching transistor1997 Jun 19Product specificationSupersedes data of September 1994File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationPNP switching transistor 2N4036FEATURES PINNING High current (max. 1 A)PIN DESCRIPTION Low voltage (max. 65 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case Amplifier and switching applications.DESCRIPTION1handbook, halfpage32PNP switching transistor in a TO-39 metal package.213MAM318Fig.1 Simplified outline (TO-39) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter --90 VVCEO collector-emitter voltage open base --65 VIC collector current (DC) --1 APtot total power dissipation Tmb 25 C - 7WhFE
