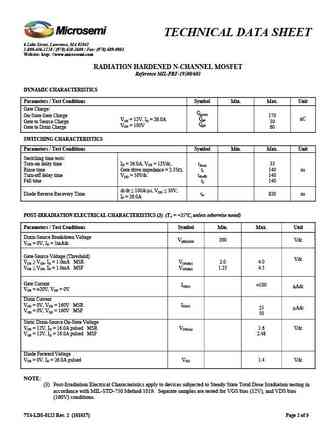

TECHNICAL DATA SHEET 6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Website: http: //www.microsemi.com RADIATION HARDENED N-CHANNEL MOSFET Reference MIL-PRF-19500/603 DEVICES LEVELS 2N7269 2N7269U JANSR (100K RAD(Si)) JANSF (300K RAD(Si))ABSOLUTE MAXIMUM RATINGS (TC = +25C unless otherwise noted) Parameters / Test Conditions Symbol Value Unit Drain Source Voltage VDS 200 VdcGate Source Voltage VGS 20 VdcContinuous Drain Current ID1 26.0 AdcTC = +25C Continuous Drain Current ID2 16.0 AdcTC = +100C (1)Max. Power Dissipation Ptl 150 W (2)Drain to Source On State Resistance Rds(on) 0.100 Operating & Storage Temperature Top, Tstg -55 to +150 CTO-254AA Note: (1) Derated Linearly by 1.2 W/C for TC > +25C JANSR2N7269, JANSF2N7269 (2) VGS = 12Vdc, ID = 16.0A See Figure 1
