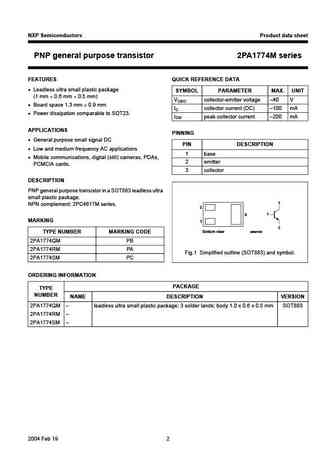

DISCRETE SEMICONDUCTORS DATA SHEETM3D883BOTTOM VIEW2PA1774M seriesPNP general purpose transistorProduct data sheet 2004 Feb 19NXP Semiconductors Product data sheetPNP general purpose transistor 2PA1774M seriesFEATURES QUICK REFERENCE DATA Leadless ultra small plastic package SYMBOL PARAMETER MAX. UNIT(1 mm 0.6 mm 0.5 mm)VCEO collector-emitter voltage -40 V Board space 1.3 mm 0.9 mmIC collector current (DC) -100 mA Power dissipation comparable to SOT23.ICM peak collector current -200 mAAPPLICATIONSPINNING General purpose small signal DCPIN DESCRIPTION Low and medium frequency AC applications1 base Mobile communications, digital (still) cameras, PDAs, 2 emitterPCMCIA cards.3 collectorDESCRIPTIONPNP general purpose transistor in a SOT883 leadless ultra small plastic package. 3NPN complement: 2PC4
