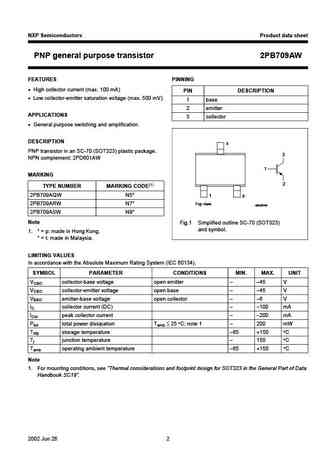

DISCRETE SEMICONDUCTORS DATA SHEETdbook, halfpageM3D1142PB709AWPNP general purpose transistorProduct data sheet 2002 Jun 26NXP Semiconductors Product data sheetPNP general purpose transistor 2PB709AWFEATURES PINNING High collector current (max. 100 mA)PIN DESCRIPTION Low collector-emitter saturation voltage (max. 500 mV).1 base2 emitterAPPLICATIONS3 collector General purpose switching and amplification.DESCRIPTION3handbook, halfpagePNP transistor in an SC-70 (SOT323) plastic package. 3NPN complement: 2PD601AW1MARKING2TYPE NUMBER MARKING CODE(1)2PB709AQW N5* 1 22PB709ARW N7*Top viewMAM0482PB709ASW N9*NoteFig.1 Simplified outline SC-70 (SOT323) and symbol.1. * = p: made in Hong Kong. * = t: made in Malaysia.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 60134).SYMBOL PAR
