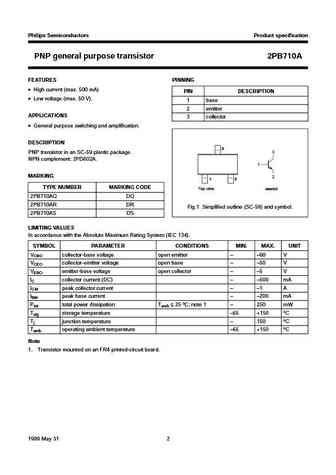

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1142PB710APNP general purpose transistor1999 May 31Product specificationSupersedes data of 1999 Apr 23Philips Semiconductors Product specificationPNP general purpose transistor 2PB710AFEATURES PINNING High current (max. 500 mA)PIN DESCRIPTION Low voltage (max. 50 V).1 base2 emitterAPPLICATIONS3 collector General purpose switching and amplification.DESCRIPTIONhandbook, halfpage33PNP transistor in an SC-59 plastic package.NPN complement: 2PD602A.1MARKING212TYPE NUMBER MARKING CODETop view MAM3222PB710AQ DQ2PB710AR DRFig.1 Simplified outline (SC-59) and symbol.2PB710AS DSLIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter --60 VVCEO collector
