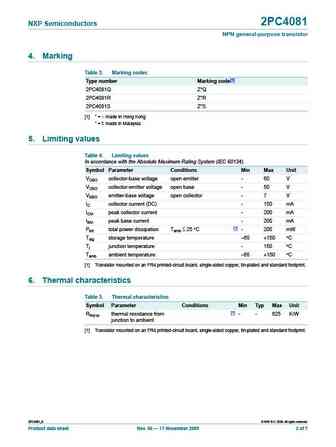

2PC4081NPN general-purpose transistorRev. 06 17 November 2009 Product data sheet1. Product profile1.1 General descriptionNPN transistor in a SOT323 (SC-70) plastic package. The PNP complement is 2PA1576.1.2 Features Low current (max. 150 mA) Low voltage (max. 50 V)1.3 Applications General-purpose switching Small signal amplification2. Pinning informationTable 1. PinningPin Description Simplified outline Symbol1base3 32emitter3 collector1122sym0213. Ordering informationTable 2. Ordering informationType number Package Name Description Version2PC4081Q SC-70 plastic surface mounted package; 3 leads SOT3232PC4081R2PC4081S2PC4081NXP SemiconductorsNPN general-purpose transistor4. MarkingTable 3. Marking codesType number Marking code[1]2PC4081Q Z*Q2PC4081R Z*R2PC4081S Z*S[1] * = -: made in Hong Kong* = t: mad
