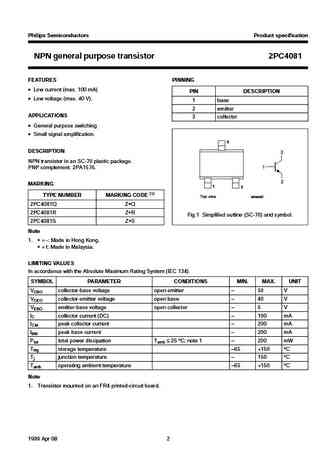

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1872PC4081NPN general purpose transistor1999 Apr 08Product specificationSupersedes data of 1997 Jul 04Philips Semiconductors Product specificationNPN general purpose transistor 2PC4081FEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 40 V).1 base2 emitterAPPLICATIONS3 collector General purpose switching Small signal amplification.3handbook, halfpageDESCRIPTION3NPN transistor in an SC-70 plastic package.1PNP complement: 2PA1576.2MARKING1 2(1)TYPE NUMBER MARKING CODETop view MAM0622PC4081Q ZQ2PC4081R ZRFig.1 Simplified outline (SC-70) and symbol.2PC4081S ZSNote1. = -: Made in Hong Kong. = t: Made in Malaysia.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAME
