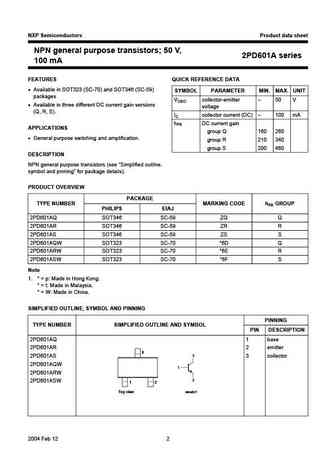

DISCRETE SEMICONDUCTORS DATA SHEET2PD601A seriesNPN general purpose transistors; 50 V, 100 mAProduct data sheet 2004 Feb 12Supersedes data of 2002 Jun 26NXP Semiconductors Product data sheetNPN general purpose transistors; 50 V, 2PD601A series100 mAFEATURES QUICK REFERENCE DATA Available in SOT323 (SC-70) and SOT346 (SC-59) SYMBOL PARAMETER MIN. MAX. UNITpackagesVCEO collector-emitter - 50 V Available in three different DC current gain versions voltage(Q, R, S).IC collector current (DC) - 100 mAhFE DC current gainAPPLICATIONSgroup Q 160 260 General purpose switching and amplification.group R 210 340group S 290 460DESCRIPTIONNPN general purpose transistors (see Simplified outline, symbol and pinning for package details).PRODUCT OVERVIEWPACKAGETYPE NUMBER MARKING CODE hFE GROUPPHILIPS EIAJ2PD601AQ SOT346
