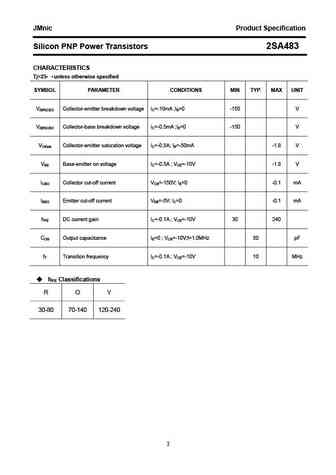

JMnic Product Specification Silicon PNP Power Transistors 2SA483 DESCRIPTION With TO-66 package Complement to type 2SC783 High voltage: VCEO=-150V(min) APPLICATIONS Power amplifier applications Vertical output applications PINNING(see Fig.2) PIN DESCRIPTION1 Base 2 EmitterFig.1 simplified outline (TO-66) and symbol 3 CollectorAbsolute maximum ratings(Ta=) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -150 V VCEO Collector-emitter voltage Open base -150 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -1.5 A IE Emitter current 1.5 A PC Collector power dissipation TC=25 20 W Tj Junction temperature 150 Tstg Storage temperature -65~150 JMnic Product Specification Silicon PNP Power Transistors 2SA483 CHARACTERISTICS Tj=25 unless otherwise specified SYM
