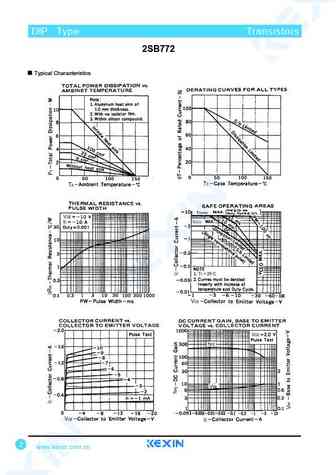

DIP Type TransistorsPNP Transistors2SB772TO-126Unit:mm8.00 0.30 3.25 0.20 Features PNP transistor High current output up to 3A Low Saturation Voltage3.20 0.10 Complement to 2SD882(1.00) (0.50)0.75 0.101.75 0.201.60 0.100.75 0.101 2 3#1+0.102.28TYP 2.28TYP 0.50 0.05[2.280.20] [2.280.20]1. Base2. Collector3. Emitter Absolute Maximum Ratings Ta = 25Parameter Symbol Rating UnitCollector to Base Voltage VCBO -40 VCollector to Emitter Voltage VCEO -30 VEmitter to Base Voltage VEBO -6 VCollector Current to Continuous IC -3 ACollector Dissipation Pc 1 WJunction Temperature TJ 150 Storage Temperature Tstg -55 to 150 Electrical Characteristics Ta = 25Parameter Symbol Test Conditions Min Typ Max UnitCollector-base breakdown voltage VCBO Ic=-100uA ,IE=0 -40 VCollector
