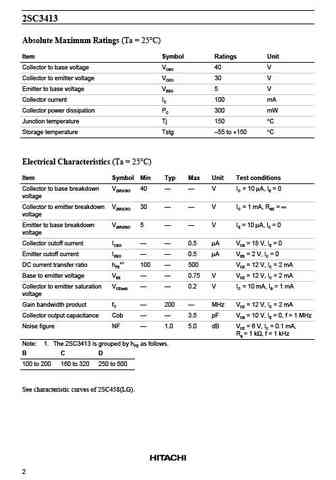

2SC3413Silicon NPN EpitaxialApplication Low frequency low noise amplifier HF amplifierOutlineSPAK1. Emitter122. Collector33. Base2SC3413Absolute Maximum Ratings (Ta = 25C)Item Symbol Ratings UnitCollector to base voltage VCBO 40 VCollector to emitter voltage VCEO 30 VEmitter to base voltage VEBO 5VCollector current IC 100 mACollector power dissipation PC 300 mWJunction temperature Tj 150 CStorage temperature Tstg 55 to +150 CElectrical Characteristics (Ta = 25C)Item Symbol Min Typ Max Unit Test conditionsCollector to base breakdown V(BR)CBO 40 V IC = 10 A, IE = 0voltageCollector to emitter breakdown V(BR)CEO 30 V IC = 1 mA, RBE = voltageEmitter to base breakdown V(BR)EBO 5 V IE = 10 A, IC = 0voltageCollector cutoff current ICBO 0.5 A VCB = 18 V, IE = 0Emitter
