Скачать даташит для 2str1215:

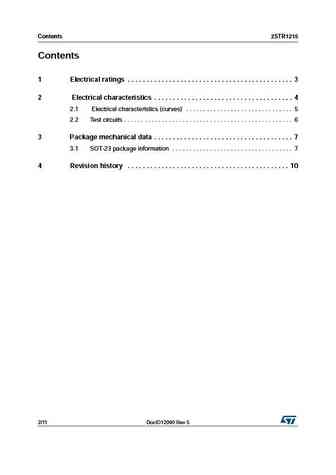

2STR1215Low voltage fast-switching NPN power transistorDatasheet - production dataFeatures Very low collector-emitter saturation voltage3 High current gain characteristic Fast switching speed Miniature SOT-23 plastic package for surface 2mounting circuits1ApplicationsSOT-23 LED Battery charger Voltage and relay driveFigure 1. Internal schematic diagram Voltage regulationDescriptionThe 2STR1215 is a NPN transistor manufactured using new PB-HCD (Power Bipolar High Current Density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.Table 1. device summaryOrder code Marking Package Packaging2STR1215 1215 SOT-23 Tape and reelMay 2016 DocID12090 Rev 5 1/11This is information on a product in full production. www.st.comContents 2STR1215
