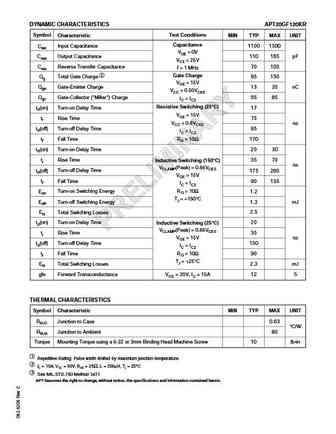

APT20GF120KR1200V 32AFast IGBTTO-220The Fast IGBT is a new generation of high voltage power IGBTs. UsingNon-Punch Through Technology the Fast IGBT offers superior ruggedness,fast switching speed and low Collector-Emitter On voltage.GC Low Forward Voltage Drop High Freq. Switching to 20KHzEC Low Tail Current Ultra Low Leakage Current Avalanche Rated RBSOA and SCSOA RatedGEMAXIMUM RATINGS All Ratings: TC = 25C unless otherwise specified.Symbol Parameter APT20GF120KR UNITVCES Collector-Emitter Voltage 1200VCGR Collector-Gate Voltage (RGE = 20K) 1200VoltsVEC Emitter-Collector Voltage 15VGE Gate-Emitter Voltage 20IC1 Continuous Collector Current @ TC = 25C 32IC2 Continuous Collector Current @ TC = 90C 20Amps1ICM1 Pulsed Collector Current @ TC = 25C 641ICM2 Pulsed Collector Current @ TC = 90C 402
