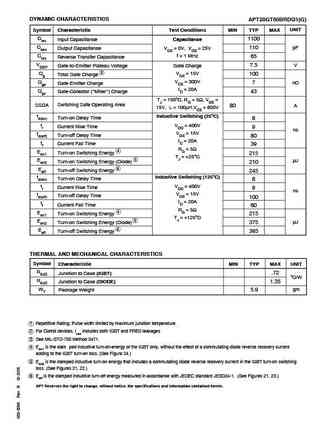

TYPICAL PERFORMANCE CURVES APT20GT60BRDQ1(G) 600V APT20GT60BRDQ1 APT20GT60BRDQ1G**G Denotes RoHS Compliant, Pb Free Terminal Finish.Thunderbolt IGBTThe Thunderblot IGBT is a new generation of high voltage power IGBTs. Using Non- Punch Through Technology, the Thunderblot IGBT offers superior ruggedness and ultrafast switching speed.GCE Low Forward Voltage Drop High Freq. Switching to 150KHz Low Tail Current Ultra Low Leakage CurrentC RBSOA and SCSOA RatedGEMAXIMUM RATINGS All Ratings: TC = 25C unless otherwise specified. Parameter UNITSymbol APT20GT60BRDQ1(G)VCES Collector-Emitter Voltage600VoltsVGEGate-Emitter Voltage30IC1Continuous Collector Current @ TC = 25C43IC2 Continuous Collector Current @ TC = 110C20 Amps1ICM Pulsed Collector Current @ TC = 150C80Switching Safe Operating
