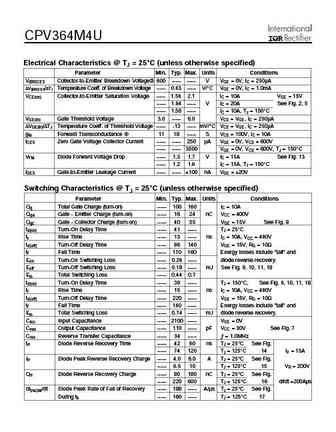

PD- 5041CPV364M4UP IGBT SIP MODULE UltraFast IGBT1Features Fully isolated printed circuit board mount packageD1 D3 D5 Switching-loss rating includes all "tail" lossesQ1 Q3 Q53 9 15 HEXFREDTM soft ultrafast diodes4 10 16 Optimized for high operating frequency (over 5kHz)D2 D4 D6 See Fig. 1 for Current vs. Frequency curve Q2 Q4 Q66 12 18Product Summary71 3 1 9Output Current in a Typical 20 kHz Motor Drive12 ARMS per phase (3.5 kW total) with TC = 90C, TJ = 125C, Supply Voltage 360Vdc,Power Factor 0.8, Modulation Depth 115% (See Figure 1)DescriptionThe IGBT technology is the key to International Rectifier's advanced line ofIMS (Insulated Metal Substrate) Power Modules. These modules are moreefficient than comparable bipolar transistor modules, while at the same timehaving the simpler gate-drive requirements of the famili
