Скачать даташит для hss2305a:

hss2305ahss2305a

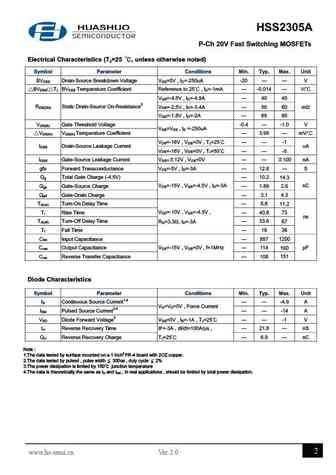

HSS2305A P-Ch 20V Fast Switching MOSFETs Description Product Summary The HSS2305A is the high cell density trenched P-VDS -20 V ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck RDS(ON),max 45 m converter applications. ID -4.9 A The HSS2305A meet the RoHS and Green Product requirement with full function reliability approved. l Super Low Gate Charge SOT 23s Pin Configurations l Green Device Available l Excellent CdV/dt effect decline l Advanced high cell density Trench technology Absolute Maximum Ratings Symbol Parameter Rating Units VDS Drain-Source Voltage -20 V VGS Gate-Source Voltage 12 V ID@TA=25 Continuous Drain Current, VGS @ -4.5V1 -4.9 A ID@TA=70 Continuous Drain Current, VGS @ -4.5V1 -3.9 A IDM Pulsed Drain Current2 -14 A PD@TA=25 Total Power Dissipation3 1.31 W PD@TA=
