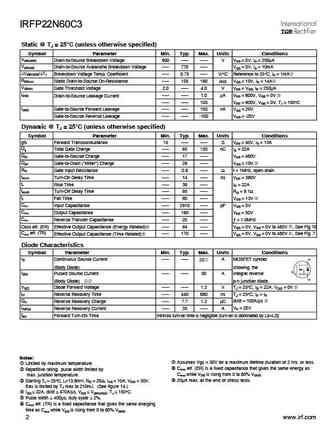

Скачать даташит для irfp22n60c3pbf:
PD - 95005SMPS MOSFETIRFP22N60C3PbF Superjunction Power MOSFETAppIicationsl PFC and Primary Switch in SMPSl Uninterruptible Power SupplyVDSS@TJ max RDS(on) typ. IDl High Speed Power Switchingl Hard Switched and High Frequency Circuits650V 155m 22A l Lead-FreeBenefitsDl Ultra Low Gate Charge Qg results in Simple DriveRequirement l Improved Gate, Avalanche and Dynamic dv/dt GRuggednessl Fully Characterized Capacitance and AvalancheTO-247ACVoltage and Current SAbsoIute Maximum RatingsSymboI Parameter Max. UnitsID @ TC = 25C Continuous Drain Current, VGS @ 10V 22 AContinuous Drain Current, VGS @ 10V 13 ID @ TC = 100CIDM 50Pulsed Drain Current PD @TC = 25C Maximum Power Dissipation 280 WLinear Derating Factor 2.2 W/CVGSGate-to-Source Voltage 20 VVGS 30 Gate-to-Source Voltage (Repetitive Peak)dv/dt
