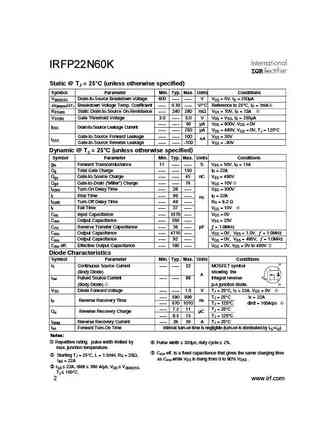

Скачать даташит для irfp22n60k:
PD - 94414IRFP22N60KSMPS MOSFETHEXFET Power MOSFETApplicationsVDSS RDS(on) typ. IDl Hard Switching Primary or PFS Switch600V 240m 22Al Switch Mode Power Supply (SMPS)l Uninterruptible Power Supplyl High Speed Power Switchingl Motor DriveBenefitsl Low Gate Charge Qg results in Simple Drive Requirementl Improved Gate, Avalanche and Dynamic dv/dt Ruggednessl Fully Characterized Capacitance and Avalanche Voltage andCurrentl Enhanced Body Diode dv/dt CapabilityTO-247ACAbsolute Maximum RatingsParameter Max. UnitsID @ TC = 25C Continuous Drain Current, VGS @ 10V 22ID @ TC = 100C Continuous Drain Current, VGS @ 10V 14 AIDM Pulsed Drain Current 88PD @TC = 25C Power Dissipation 370 WLinear Derating Factor 2.9 W/CVGS Gate-to-Source Voltage 30 Vdv/dt Peak Diode Recovery dv/dt 15 V/nsTJ Operating Junction and -55 to + 150
