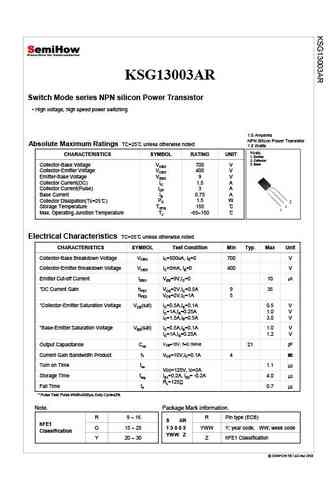

KSG13003AR SEMIHOW REV.A0,Mar 2009KSG13003ARKSG13003ARSwitch Mode series NPN silicon Power Transistor High voltage, high speed power switching1.5 AmperesNPN Silicon Power Transistor Absolute Maximum Ratings TC=25 unless otherwise noted1.5 WattsTO-92LCHARACTERISTICS SYMBOL RATING UNIT1. Emitter2. Collector3. BaseCollector-Base Voltage VCBO 700 VCollector-Emitter Voltage VCEO 400 VEmitter-Base Voltage VEBO 9 VCollector Current(DC) IC 1.5 ACollector Current(Pulse) ICP 3 ABase Current IB 0.75 ACollector Dissipation(Tc=25) PC 1.5 WStorage Temperature TSTG 150 Max. Operating Junction Temperature TJ -65~150 Electrical Characteristics TC=25 unless otherwise notedCHARACTERISTICS SYMBOL Test Condition Min Typ. Max UnitCollector-Base Breakdown Voltage VCBO IC=500uA, IE=0 700 VCollector-Emitter Breakdown Voltage VCEO IC=5
