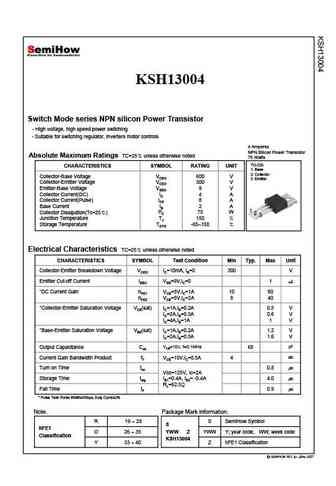

KSH13004 SEMIHOW REV.A1,June 2007KSH13004KSH13004Switch Mode series NPN silicon Power Transistor- High voltage, high speed power switching- Suitable for switching regulator, inverters motor controls4 AmperesNPN Silicon Power Transistor Absolute Maximum Ratings TC=25 unless otherwise noted75 WattsTO-220CHARACTERISTICS SYMBOL RATING UNIT1. Base2. CollectorCollector-Base Voltage VCBO 600 V3. EmitterCollector-Emitter Voltage VCEO 300 VEmitter-Base Voltage VEBO 9 VCollector Current(DC) IC 4 ACollector Current(Pulse) ICP 8 ABase Current IB 2 A1Collector Dissipation(Tc=25) PC 75 W23Junction Temperature TJ 150 Storage Temperature TSTG -65~150 Electrical Characteristics TC=25 unless otherwise notedCHARACTERISTICS SYMBOL Test Condition Min Typ. Max UnitCollector-Emitter Breakdown Voltage VCEO IC=10mA, IB=0 300 VEmi
