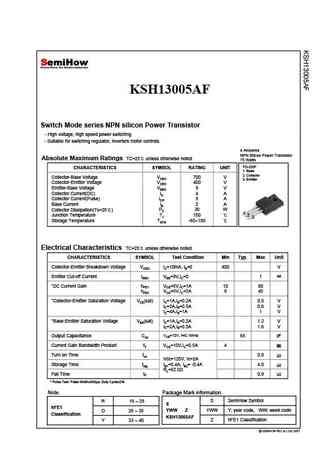

KSH13005AFKSH13005AF SEMIHOW REV.A1,Oct 2007KSH130005AFKSH13005AFSwitch Mode series NPN silicon Power TransistorSwitch Mode series NPN silicon Power Transistor- High voltage, high speed power switching- Suitable for switching regulator, inverters motor controls4 AmperesNPN Silicon Power Transistor Absolute Maximum Ratings TC=25 unless otherwise noted75 WattsTO-220FCHARACTERISTICS SYMBOL RATING UNIT1. Base2. CollectorCollector-Base Voltage VCBO 700 V3. EmitterCollector Emitter Voltage V 400 VCollector-Emitter Voltage VCEO 400 VEmitter-Base Voltage VEBO 9 VCollector Current(DC) IC 4 ACollector Current(Pulse) ICP 8 ABase Current IB 2 ACollector Dissipation(Tc=25) PC 30 W1Junction Temperature TJ 150 23Storage Temperature TSTG -65~150 Electrical Characteristics TC=25 unless otherwise notedCHARACTERISTICS SY
