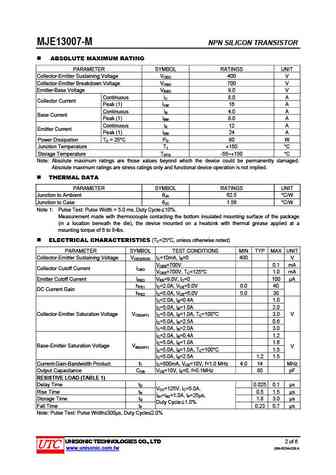

UNISONIC TECHNOLOGIES CO., LTD MJE13007-M NPN SILICON TRANSISTOR NPN BIPOLAR POWER TRANSISTOR FOR SWITCHING POWER SUPPLY APPLICATIONS DESCRIPTION The UTC MJE13007-M is designed for high-voltage andhigh-speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch mode applications. FEATURES * VCEO(SUS) 400V * 700V Blocking Capability ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 MJE13007L-M-TA3-T MJE13007G-M-TA3-T TO-220 B C E TubeMJE13007L-M-TA3-T(1)T: Tube(1)Packing Type(2) TA3: TO-220(2)Package Type(3) G: Halogen Free, L: Lead Free(3)Lead Freewww.unisonic.com.tw 1 of 6 Copyright 2012 Unisonic Technologies Co., Ltd QW-R204-028.A MJE13007-M NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATING PARAMETER SYMBOL RA
