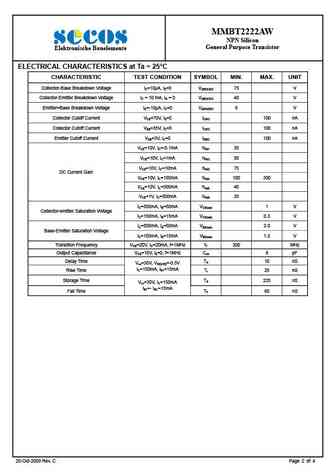

MMBT2222AW NPN Silicon General Purpose Transistor Elektronische Bauelemente RoHS Compliant Product A suffix of -C specifies halogen & lead-free SOT-323FEATURE Complementary PNP Type Available(MMBT2907AW) AL Epitaxial Planar Die Construction 33 Ideal for Medium Power Amplification and Switching Top View C B11 22K EDMARKING CODE H JF GMMBT2222AW = K3P, 1P Millimeter MillimeterREF. REF.Min. Max. Min. Max.A 1.80 2.20 G 0.100 REF.B 1.80 2.45 H 0.525 REF.C 1.15 1.35 J 0.08 0.25D 0.80 1.10 K - -E 1.20 1.40 L 0.650 TYP.F 0.20 0.40ABSOLUTE MAXIMUM RATINGS at Ta = 25C Parameter Symbol Ratings UnitCollector to Base Voltage VCBO 75 VCollector to Emitter Voltage VCEO 40 VEmitter to Base Voltage VEBO 6 VCollector Currrent IC 600 mATotal Power Dissipation PC 200 mWJunction, Storage Temperature TJ, TSTG +1
