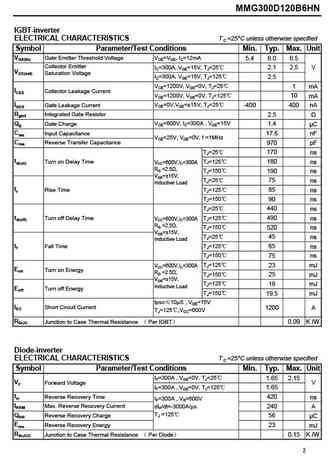

MMG300D120B6HN1200V 300A IGBT ModuleApril 2015 Version 01 RoHS CompliantPRODUCT FEATURES High short circuit capability,self limiting short circuit current IGBT CHIP(T4 Fast Trench+Field Stop technology) VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching losses TJmax =175CAPPLICATIONS High frequency switching application Medical applications Motion/servo control UPS systemsIGBT-inverterABSOLUTE MAXIMUM RATINGS T =25C unless otherwise specifiedCSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 400IC DC Collector CurrentTC=90 300 AICM Repetitive Peak Collector Current tp=1ms 600Ptot Power Dissipation Per IGBT 1650 W
