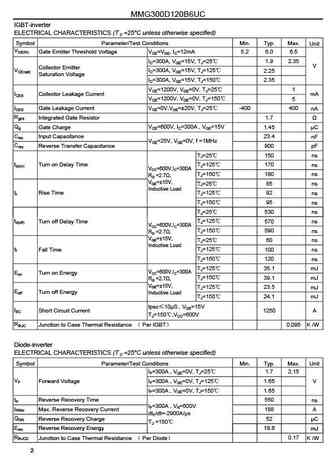

MMG300D120B6UC1200V 300A IGBT ModuleJanuary 2020 Preliminary RoHS CompliantPRODUCT FEATURES IGBT chip in trench FS-technology Low switching losses VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recoveryAPPLICATIONS Welding Machine Power Supplies OthersIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions ValuesUnitVCES TJ=25 1200Collector Emitter VoltageVVGESGate Emitter Voltage 20TC=25,TJmax=175 423ICDC Collector CurrentTC=90,TJmax=175 300 AICMRepetitive Peak Collector Current tp=1ms 600Ptot TC=25,TJmax=175 1578 WPower Dissipation Per IGBTDiode-inverterABSOLUTE MAXIMUM RATINGS (T =25C unless otherwise specified)CSymbol Parameter/Te
