Скачать даташит для mmg50h120x6tc:

mmg50h120x6tcmmg50h120x6tc

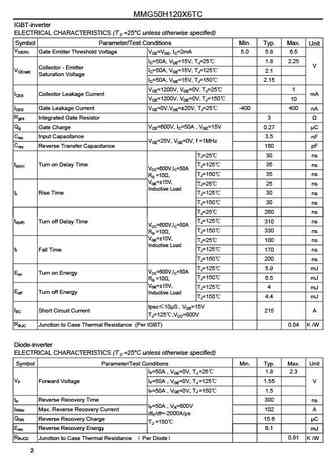

MMG50H120X6TC1200V 50A Six-Pack ModuleMay 2020 Preliminary RoHS CompliantPRODUCT FEATURES High level of integration IGBT CHIP(Trench+Field Stop technology) Low saturation voltage and positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Industry standard package with insulated copper base plate and soldering pins for PCB mounting Temperature sense includedAPPLICATIONS AC motor control Motion/servo control Motion/servo control Inverter and power suppliesIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions ValuesUnitVCES TJ=25 1200Collector Emitter VoltageVVGESGate Emitter Voltage 20TC=25, TJmax=175 76ICDC Collector CurrentTC=100, TJmax=175 50 AICM
