Скачать даташит для mmg50h120x6tn:

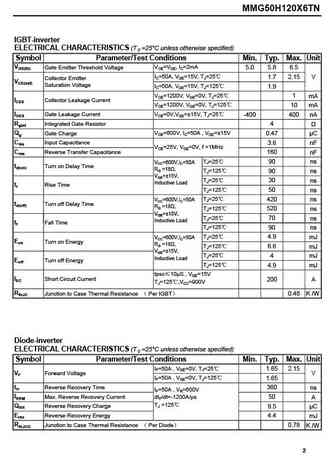

MMG50H120X6TN1200V 50A Six-Pack ModuleMay 2015 Version 01 RoHS CompliantPRODUCT FEATURES IGBT Chip(IGBT3 Trench+Field Stop technology)Diode Chip(Emcon3 wheeling diode) Low saturation voltage and positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Industry standard package with insulated copper baseplate and soldering pins for PCB mounting Temperature sense includedAPPLICATIONS AC motor control Motion/servo control Inverter and power suppliesIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 75IC DC Collector CurrentTC=80 50 AICM Repetitive Peak Collector Current tp=1ms 100Ptot
