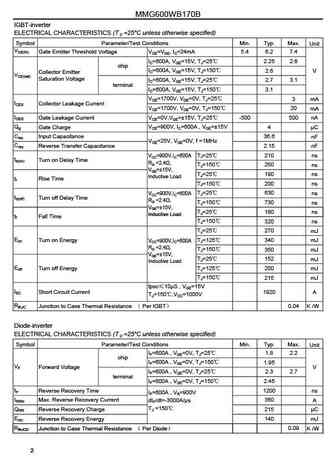

MMG600WB170B1700V 600A IGBT ModuleFebruary 2016 Version 01 RoHS CompliantPRODUCT FEATURES High short circuit capability,self limiting short circuit current IGBT CHIP(Highly rugged SPT+ design) VCE(sat) with positive temperature coefficient Ultra Low Loss,High Ruggedness Free wheeling diodes with fast and soft reverse recovery Temperature sense includedAPPLICATIONS AC motor control Motion/servo control Inverter and power supplies Photovoltaic/Fuel cellIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions ValuesUnitVCES TJ=25 1700Collector Emitter VoltageVVGESGate Emitter Voltage 20TC=25 900ICDC Collector CurrentTC=100 600 AICMRepetitive Peak Collector Current tp=1ms 1200PtotPower Dissipation Per IGBT 3750 WDiode-inverterABSOL
