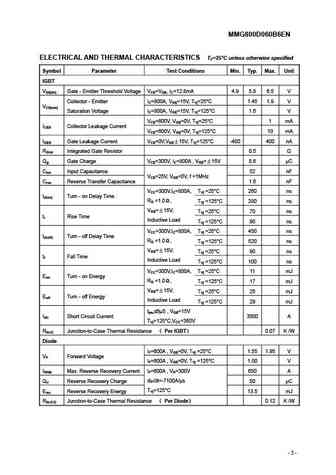

MMG800D060B6EN 600V 800A IGBT Module January 2013 PRELIMINARY RoHS Compliant FEATURES High short circuit capability,self limiting short circuit current VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching losses APPLICATIONS GD Series Module High frequency switching application Medical applications Motion/servo control UPS systems ABSOLUTE MAXIMUM RATINGS TC=25C unless otherwise specified Symbol Parameter Test Conditions Values UnitIGBT VCES Collector - Emitter Voltage TVj=25C 600 VVGES Gate - Emitter Voltage 20 V1000 ATC=25C IC DC Collector Current TC=60C 800 AICM Repetitive Peak Collector Current tp=1ms 1600 APtot Power Dissipation Per IGBT 2100 W Diode VRRM Repetitive Reverse Voltag
