Скачать даташит для mmgt50w120xb6c:

mmgt50w120xb6cmmgt50w120xb6c

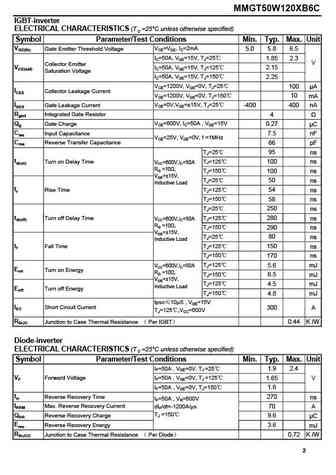

MMGT50W120XB6C1200V 50A PIM ModuleSeptember 2015 Version 0 RoHS CompliantPRODUCT FEATURES High level of integration IGBT CHIP(Trench+Field Stop technology) Low saturation voltage and positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Industry standard package with insulated copper baseplate and soldering pins for PCB mounting Temperature sense includedAPPLICATIONS AC motor control Motion/servo control Rectifier+Brake+Inverter Inverter and power suppliesIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 75IC DC Collector CurrentTC=100 50 AICM Repetitive Peak Collector Current t
