Скачать даташит для mmgt75h120x6c:

mmgt75h120x6cmmgt75h120x6c

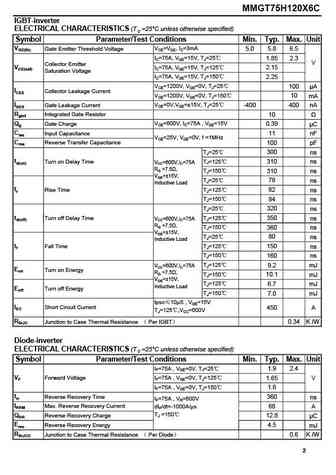

MMGT75H120X6C1200V 75A Six-Pack ModuleSeptember 2015 Version 0 RoHS CompliantPRODUCT FEATURES High level of integration IGBT CHIP(Trench+Field Stop technology) Low saturation voltage and positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Industry standard package with insulated copper baseplate and soldering pins for PCB mounting Temperature sense includedAPPLICATIONS AC motor control Motion/servo control Inverter and power suppliesIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 115IC DC Collector CurrentTC=100 75 AICM Repetitive Peak Collector Current tp=1ms 150Ptot Powe
