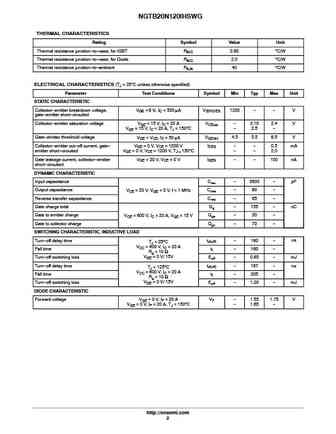

NGTB20N120IHSWGIGBTThis Insulated Gate Bipolar Transistor (IGBT) features a robust andcost effective Field Stop (FS) Trench construction, and providessuperior performance in demanding switching applications, offeringboth low on-state voltage and minimal switching loss. The IGBT iswell suited for resonant or soft switching applications. Incorporatedhttp://onsemi.cominto the device is a rugged co-packaged free wheeling diode with alow forward voltage.20 A, 1200 VFeaturesVCEsat = 2.10 V Low Saturation Voltage using Trench with Field Stop Technology Low Switching Loss Reduces System Power Dissipation Eoff = 0.65 mJ Optimized for Low Case Temperature in IH Cooker ApplicationC Low Gate Charge These are Pb-Free DevicesTypical Applications Inductive HeatingG Consumer Appliances Soft SwitchingEABSOLUTE MAXIMUM RATINGSR
