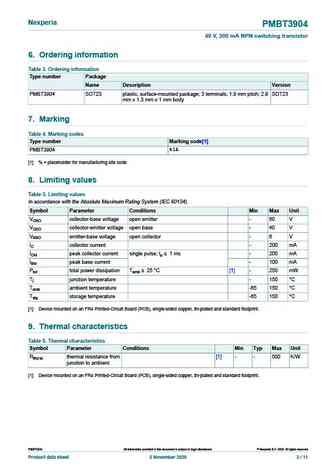

PMBT390440 V, 200 mA NPN switching transistor5 November 2020 Product data sheet1. General descriptionNPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plasticpackage.PNP complement: PMBT39062. Features and benefits Collector current capability IC = 200 mA Collector-emitter voltage VCEO = 40 V3. Applications General switching and amplification4. Quick reference dataTable 1. Quick reference dataSymbol Parameter Conditions Min Typ Max UnitVCEO collector-emitter open base - - 40 VvoltageIC collector current - - 200 mAhFE DC current gain VCE = 1 V; IC = 10 mA [1] 100 - 300 [1] Pulsed test: tp 300 s; 0.025. Pinning informationTable 2. Pinning informationPin Symbol Description Simplified outline Graphic symbol31 B base C2 E emitterB3 C collectorEsym0211 2SOT23NexperiaPMBT3
