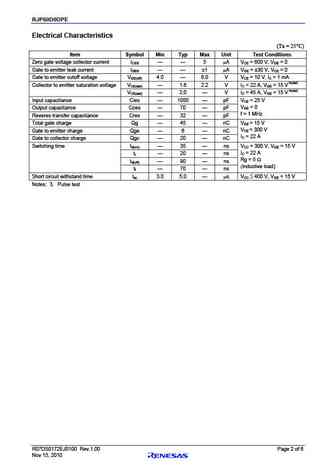

Preliminary Datasheet RJP60D0DPE R07DS0172EJ0100Silicon N Channel IGBT Rev.1.00High Speed Power Switching Nov 15, 2010Features Short circuit withstand time (5 s typ.) Low collector to emitter saturation voltage VCE(sat) = 1.6 V typ. (IC = 22 A, VGE = 15 V, Ta = 25C) Gate to emitter voltage rating 30 V Pb-free lead plating and chip bonding Outline RENESAS Package code: PRSS0004AE-B(Package name: LDPAK (S)-(1) )C41. Gate2. CollectorG3. Emitter124. Collecotor3EAbsolute Maximum Ratings (Ta = 25C) Item Symbol Ratings UnitCollector to emitter voltage VCES 600 VGate to emitter voltage VGES 30 VCollector current Tc = 25C IC 45 ATc = 100C IC 22 ACollector peak current ic(peak) Note1 90 ACollector dissipation PC Note2 122 WJunction to case thermal impedance j-c Note2 1.02 C/ WJunction
