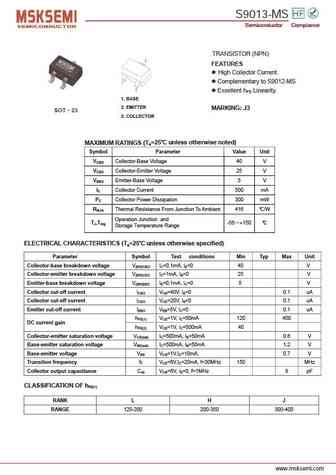

www.msksemi.comS9013-MSSemiconductor CompianceSemiconductor Compiance TRANSISTOR (NPN)FEATURES High Collector Current. Complementary to S9012-MS Excellent hFE Linearity.1. BASE2. EMITTERMARKING: J3 SOT23 3. COLLECTORMAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage 40 V VCEO Collector-Emitter Voltage 25 V VEBO Emitter-Base Voltage 5 V IC Collector Current 500 mA PC Collector Power Dissipation 300 mW RJA Thermal Resistance From Junction To Ambient 416 /WOperation Junction andTJ,Tstg -55+150 Storage Temperature RangeELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=0.1mA, IE=0 40 V Collector-emitter breakdown voltage V(BR)CEO IC=1mA, IB=0 25 V
