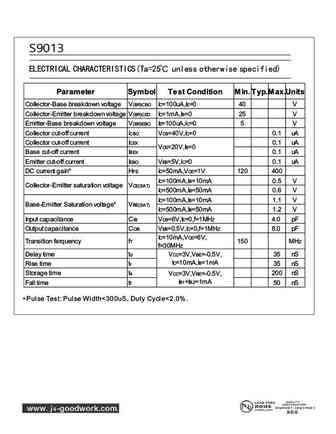

S9013NPN GENERAL PURPOSE SWITCHING TRANSISTOR25Volts POWER 300mWattsVOLTAGEFEATURESNPN epitaxial silicon, planar design. Collector-emitter voltage VCE=25V.Collector current IC=0.5A.ansition frequency fT>150MHz @ TrIC=20mAdc, VCE=6Vdc, f=30MHz.In compliance with ER RoHS 2002/95/EC directives.MECHANICAL DATACase: SOT-23, Plastic 3CTerminals: Solderable per MIL-STD-750, method 2026 J3Approx. Weight: 0.008gramB E1 2Marking: J3RANK L H JRANGE 120-200 200-350 300-40MAXIMUM RATINGS(Ta=25 unless otherwise noted)Symbol Parameter Vaule UnitVCBO Collector-Base Voltage 40 VVCEO Collector-Emitter Voltage 25 VVEBO Emitter-Base Voltage 5 VIC Collector Current 0.5 APD Total Device Dissipation 0.3 WORJA Thermal Resistance Form Junction to Ambient 416 C/WOTJ Junction Temperature 150 COTSTG Storage Temperature
